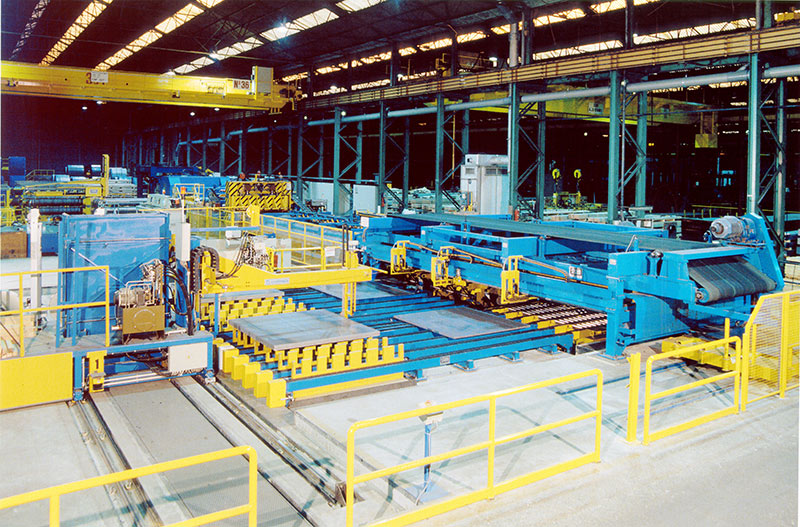

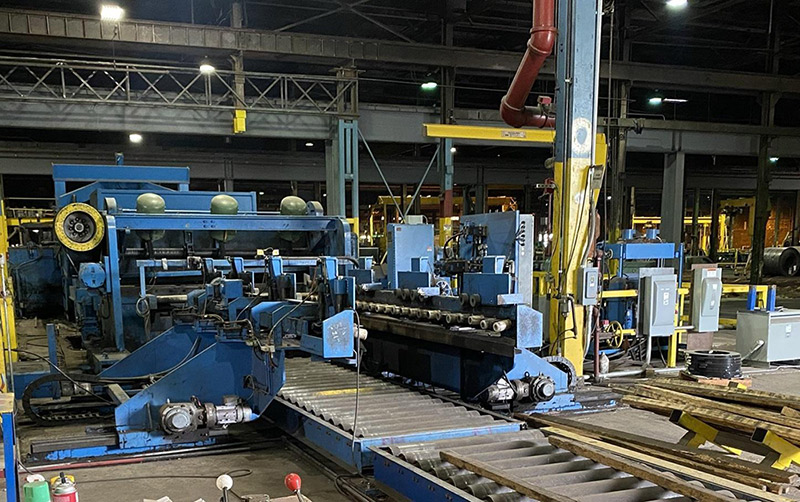

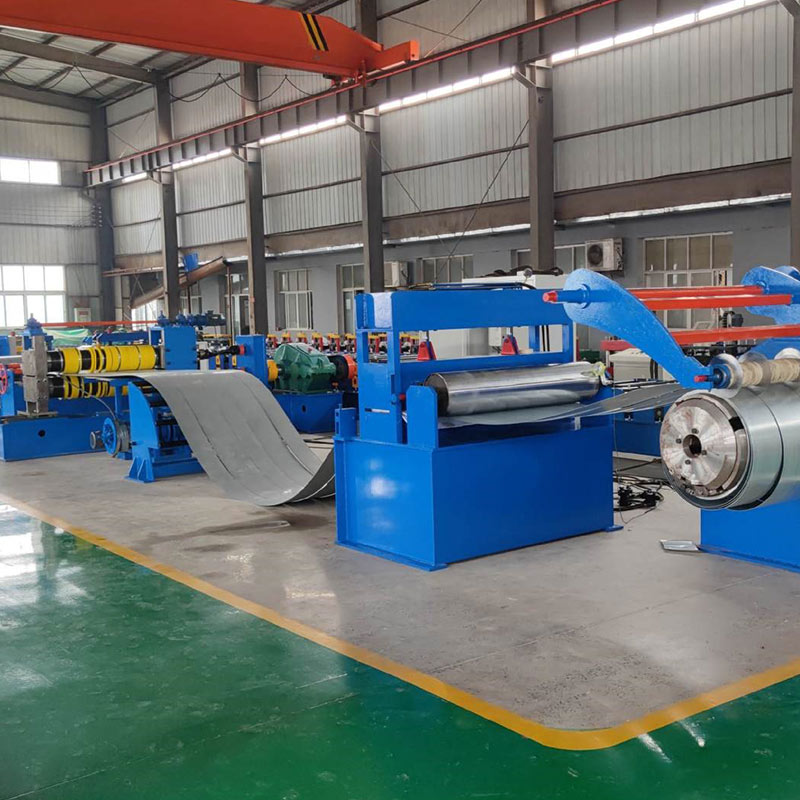

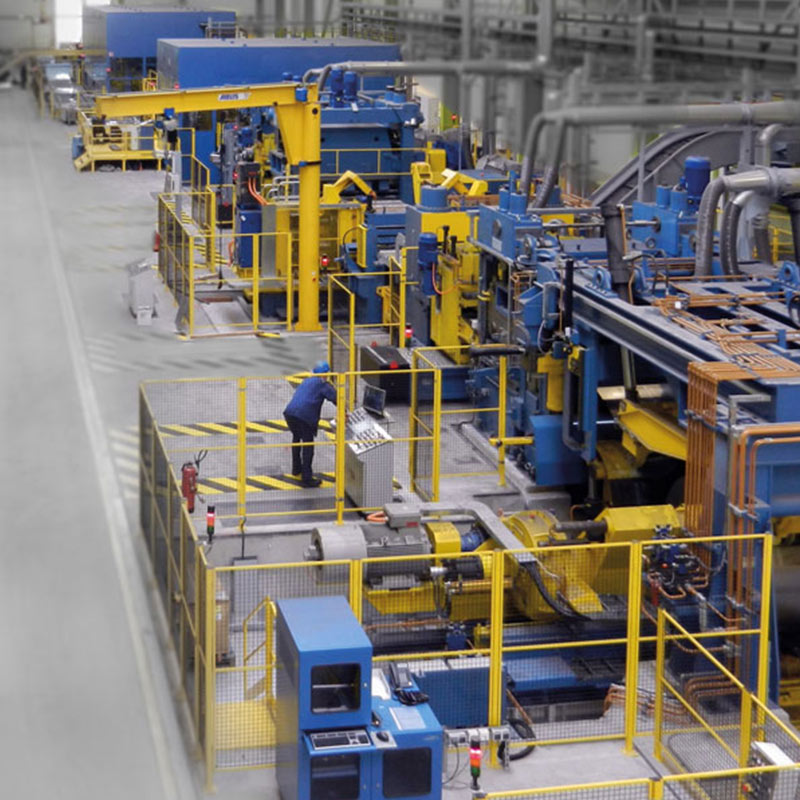

Rotary Shear Cut to Length Line
Processing Material:Cold/Hot Rolled, Stainless, Wild, Galvanized Steel
Processing Thickness: 0.23mm
Processing Width: 100-1600mm
Cutting Accuracy: ±0.3mm
Max. Speed: 70-80m/Min
Max. Cutting Frequency:150spm
Product Description:
Rotary shear line ERCL series
This rotary shear is suitable for hot rolling carbon steel, tinplates, stainless steel, and other metal with coated surfaces. It is widely used in home appliances, automobiles, hardware, steel products and other industries. This rotary shear adopts 6H leveler to carry out continuous leveling of the panels. With two stacking devices, this rotary shear has a high working efficiency. It is capable of shearing 150 plates per minute, with a maximum running speed of 80 meters per minute. With 6H leveler, the processed plates are smooth and free of scrapes.
This ERCL rotary shear usually consists of a uncoiler, a leveler, meter encoder, feed roll, rotary shear, conveyor belt and stacker. Application in cold rolled carbon steel, silicon Steel, tinplate, Stainless steel and pre-painted material etc.
Basic Info.
Model NO. | ERCL Series |
Certificate | CE, ISO9001 |
Brand | Eagle |
Specification | CE, ISO9001 |
Origin |
|
Production Capacity | 60 Sets/Year |
Uncoiling Weight | 5-20t |
Production Period | 5 Months |
Transport Package | Seaworthy |
Trademark | Eagle |
HS Code | 8462312000 |
Structure of Rotary Shear: Dual Rotary Type
1. The cutting part of our rotary shear is comprised of an upper blade holder and a lower blade holder. The two slide holders carry out synchronous rotation and are connected to a linear guide rail. When the crankshaft rotates, the cutting station cuts and conveys the material.
2. The upper blade is of rectangular shape and the lower one is of "V" shape. They are made of Cr12MoV. The upper slide rest can be conveniently adjusted to change the cutting clearance.
3. The drive motor of this rotary shear is AC servo spindle motor (55 kw, 500rpm). It is connected to the transmission shaft with a conical connector, which has the capability of enduring frequent impact.
Parameters of Rotary Shear
Model/ Items | Thickness (mm) | Width (mm) | Shearing Accuracy (mm) | Max. Line Speed m/min | Max. Cutting Speed (spm) | Coil Weight (ton) |
ERCL-2x650 | 0.2-2 | 100-650 | ±0.3/1000mm | 60 | 150 | 8 |
ERCL-2x800 | 0.2-2 | 100-800 | 60 | 150 | 8 | |
ERCL-2x1300 | 0.3-2 | 400-1300 | 70 | 150 | 15 | |
ERCL-2x1600 | 0.3-2 | 400-1600 | 70 | 150 | 15 | |
ERCL-3x1600 | 0.4-3 | 400-1600 | 70 | 120 | 15 |
Transaction procedure:
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty
Jinan Jieheng Machinery Co., Ltd. was registered in September 2017 and is located at No. 10-1, Xiaolizhuang Industrial Park, Huaiyin District, Jinan City, Shandong Province.
The company covers an area of 15 acres and has built a workshop of more than 5,860 square metres. There are more than 50 employees, of which more than 60% are engaged in the unwinding line, specialising in the manufacture, research and development, sales, installation, maintenance and technical service of CNC automation equipment, general equipment, electrical equipment, CNC machine tools, hydraulic and pneumatic equipment, and so on. The company is relying on its own advantages, fully relying on the Jinan Foundry and Forging Machinery Research Institute (state-owned enterprises) of the technology and management and other resources, attaching importance to the introduction and cultivation of management, marketing and technical personnel, the integration of external resources, optimise the internal management, and continue to develop and innovate, and stride forward in the direction of business specialization and diversification of operations.
